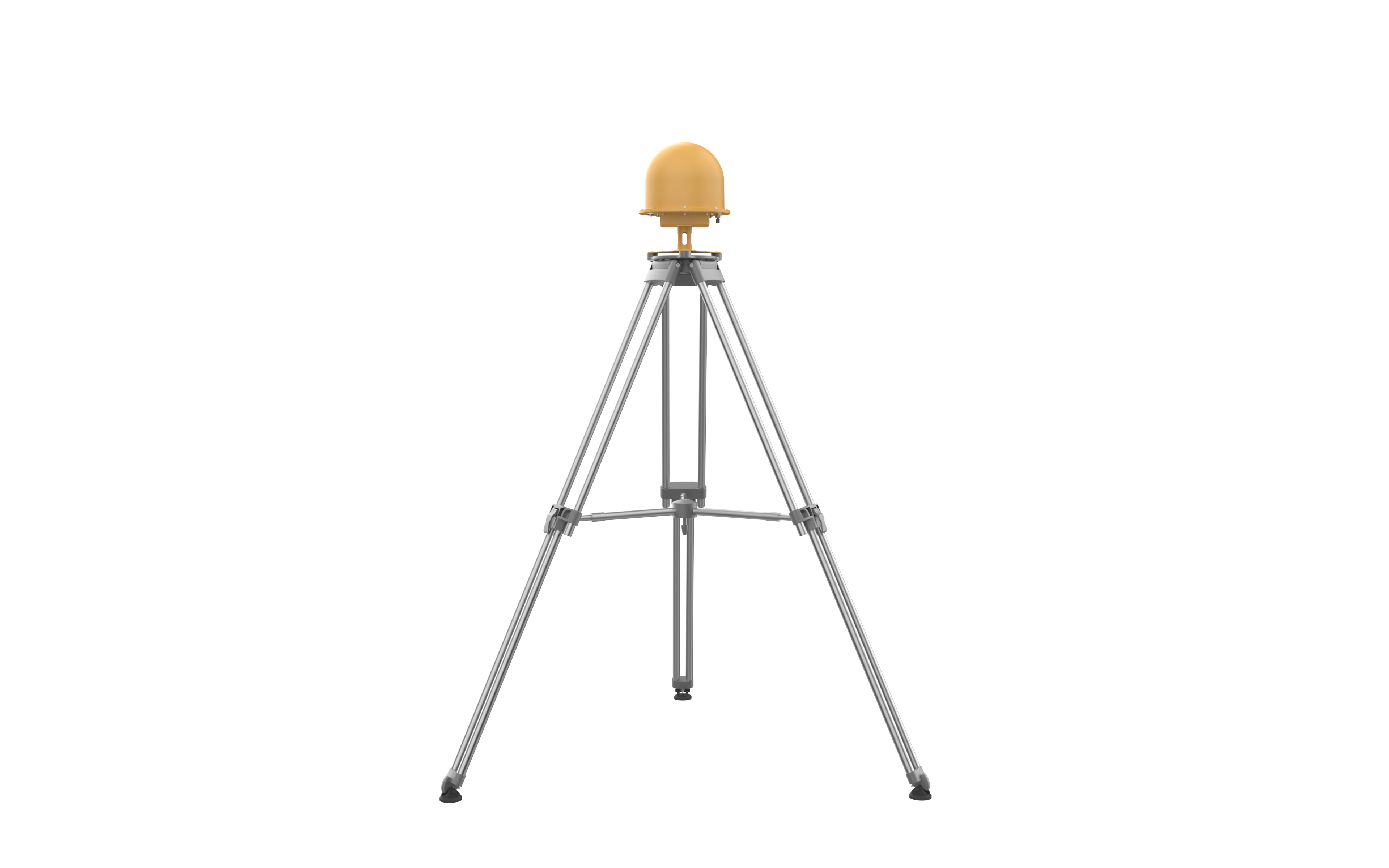

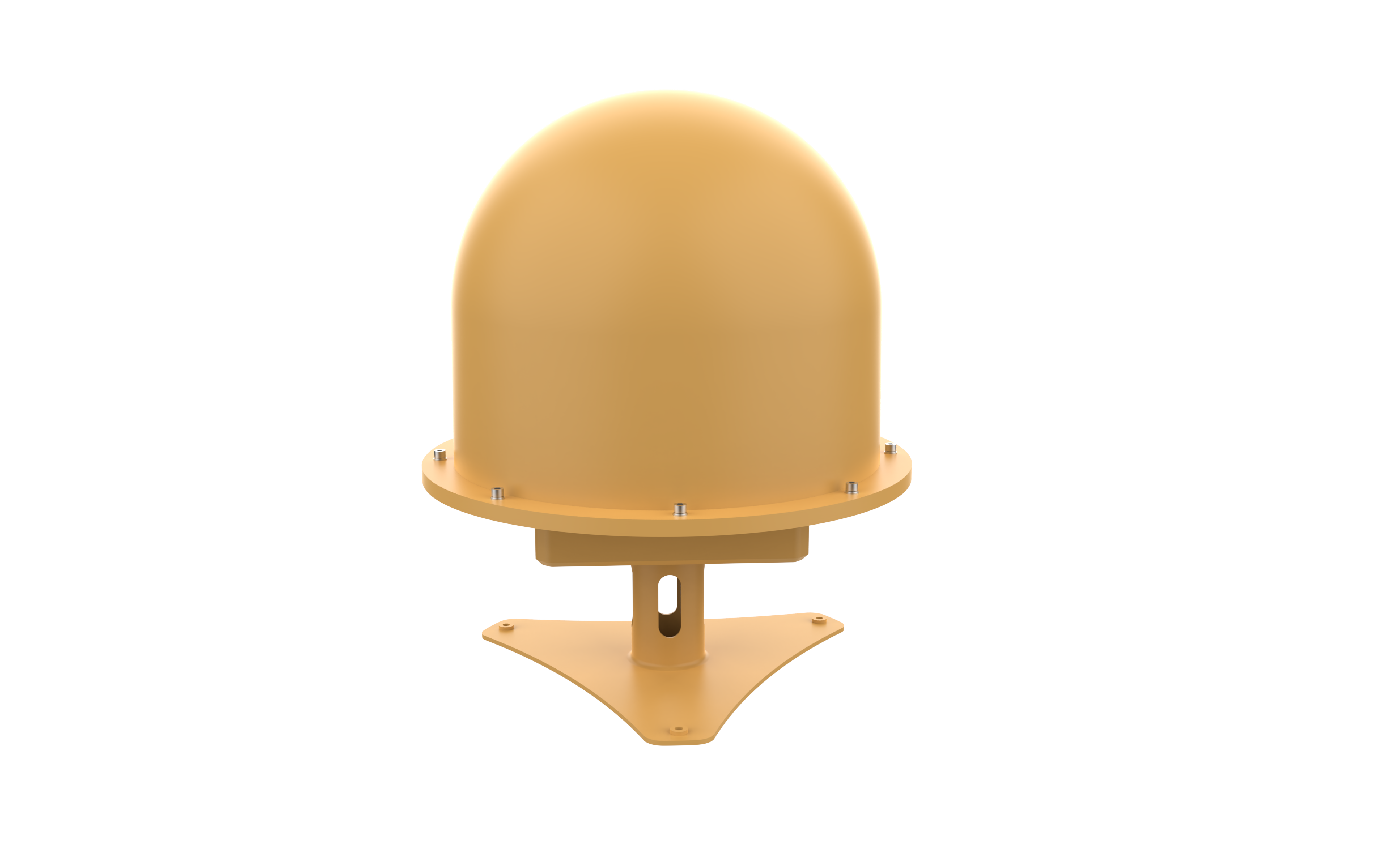

DJ200F FPV Detection & Jammer 2 in 1

DJ200F

FPV Detection & Jammer 2 in 1

FPV Detection & Jammer 2 in 1

The DJ200F is a detection-strike integrated equipment. With a low-power design, it uses radio-signal detection technology to extract key signal characteristics from the FPV drone's video-transmission signal. Using spectrum-feature identification technology, it can precisely identify the FPV video transmission and apply precise jamming to it, causing the operator's FPV goggles to lose the video image, thereby achieving FPV-drone detection and jamming.

Inquire Back to Products
DJ200F
SPECIFICATIONS

Specifications

Detection & Jamming Frequency Band 1080МНz~1360MHz、3310MHz~3495МНz、4990МНz~5200MHz、5362MHz~5945MHz
Detection Range ≥2km
Azimuth Detection Range 360°
Jamming Range ≥1.5km
Detection Response Time ≤ 2s
Jamming Response Time ≤ 1s
Weight ≤ 15kg
Dimensions Diameter: 500mm, Height: 495mm
Ingress Protection IP65

The DJ200F is a detection-strike integrated equipment. With a low-power design, it uses radio-signal detection technology to extract key signal characteristics from the FPV drone's video-transmission signal. Using spectrum-feature identification technology, it can precisely identify the FPV video transmission and apply precise jamming to it, causing the operator's FPV goggles to lose the video image, thereby achieving FPV-drone detection and jamming.

Product Features

  • Low-power design
  • Precise jamming
  • Wide frequency coverage
  • Low false-alarm rate
