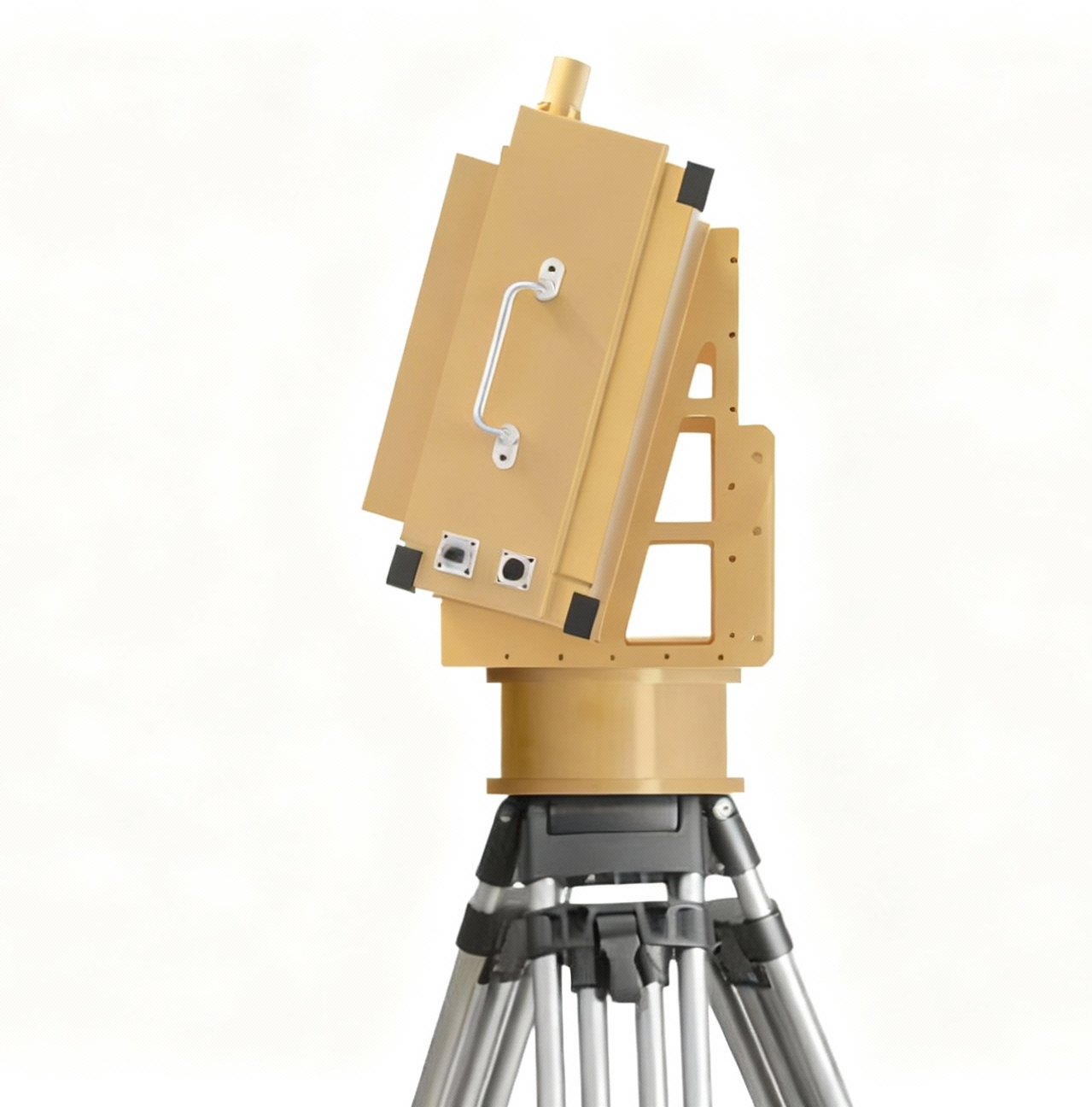

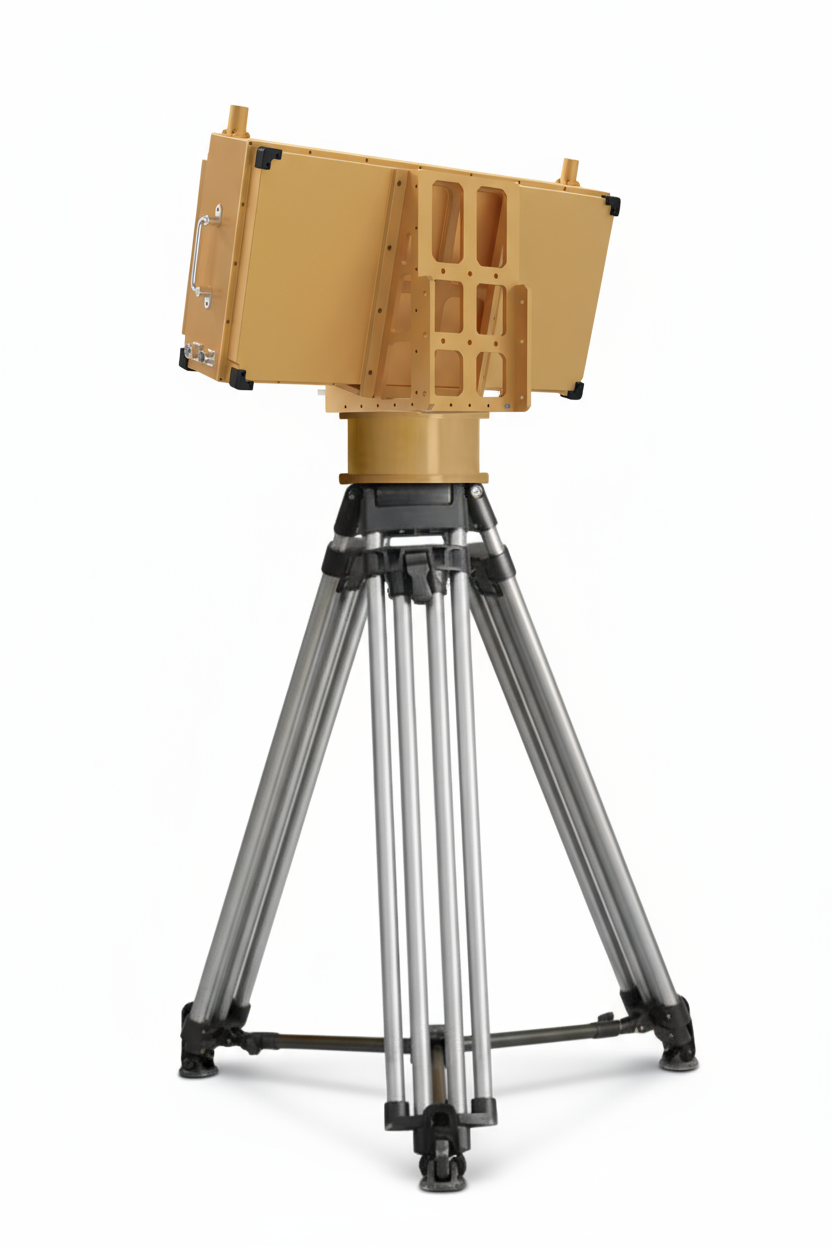

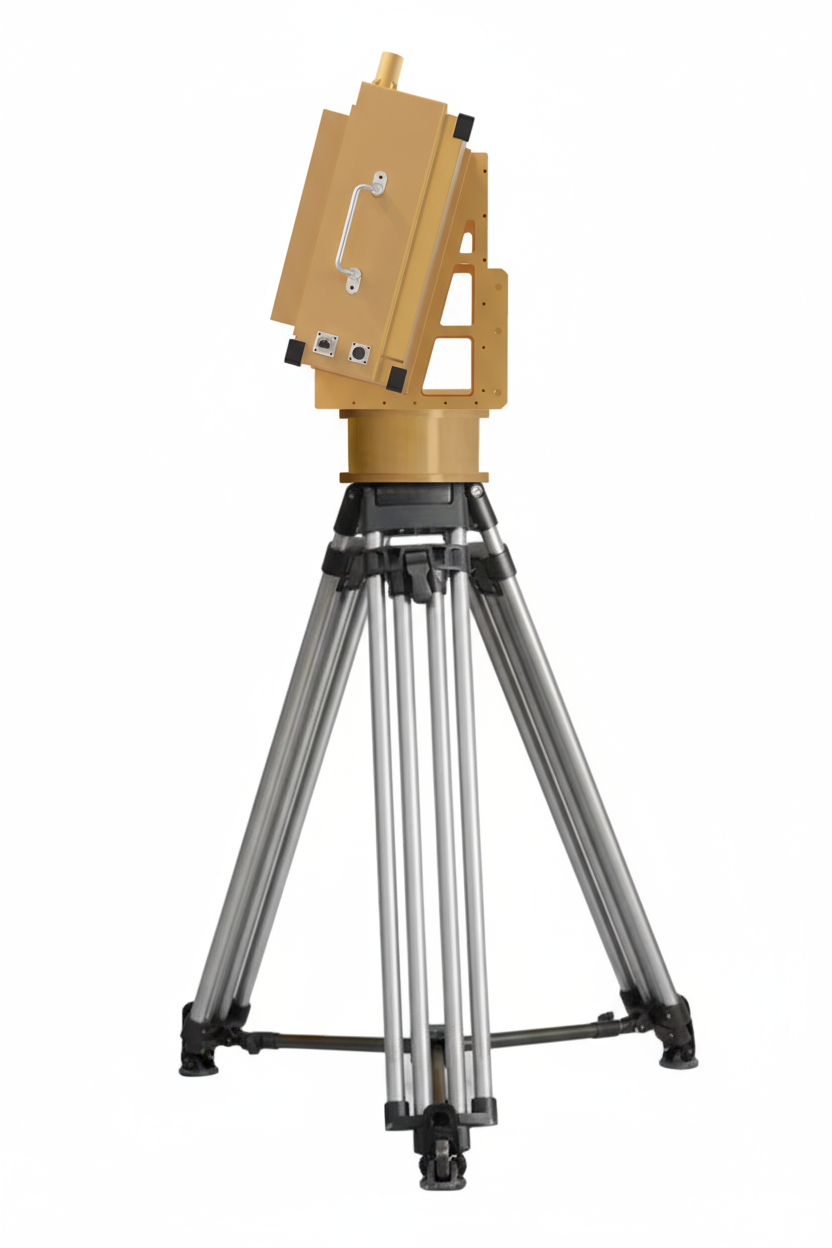

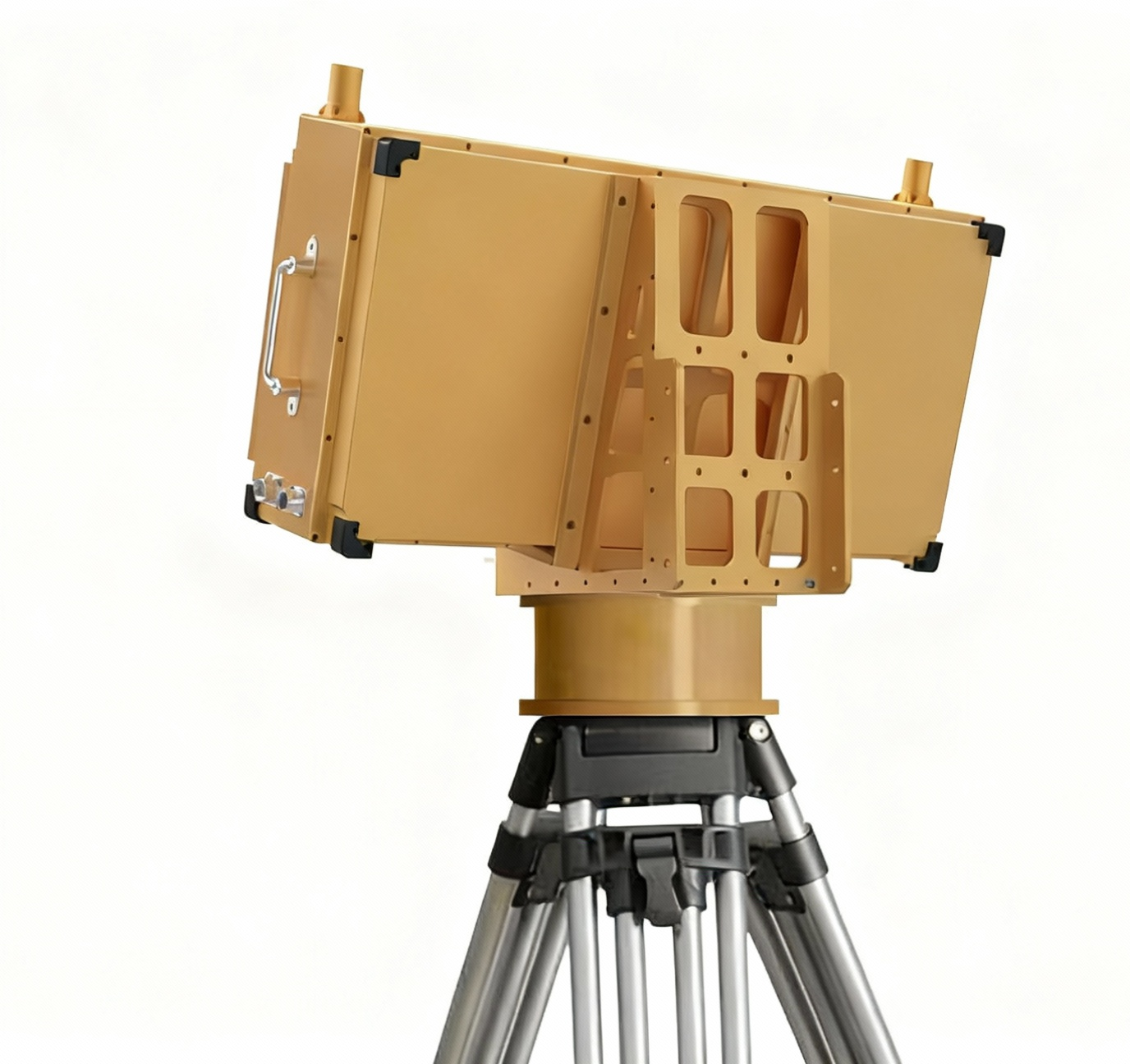

Multi-Target Locking Anti-Drone Radar with 5km Detection
5km Low-Altitude Radar System
Advanced AI algorithms automatically filter birds and environmental clutter, 3D Airspace Visualization
| Detection Range | 5km(RCS=0.01㎡) |
|---|---|
| Distance Blind Range | 100m |
| Scanning Range | Azimuth 360°, pitch 30° |
| Speed Measurement Range | 1-50m/s |
| Accuracy | 5m |
| Data Rate | 3s |
| Operating Temperature | -40℃-55℃ |
| In | IP66 |
The 5km AI Drone Detection Radar is specifically designed for low-altitude airspace surveillance and drone detection. With AI-powered target filtering, the system accurately detects and tracks drones while reducing false alarms caused by birds and environmental interference.
Detection range up to 5 km
AI-based false target filtering
Real-time drone tracking
Multi-target monitoring
3D airspace visualization
Radar-to-camera automatic cueing
Real-time target data output
Contact us for detailed product specifications and customized solutions
