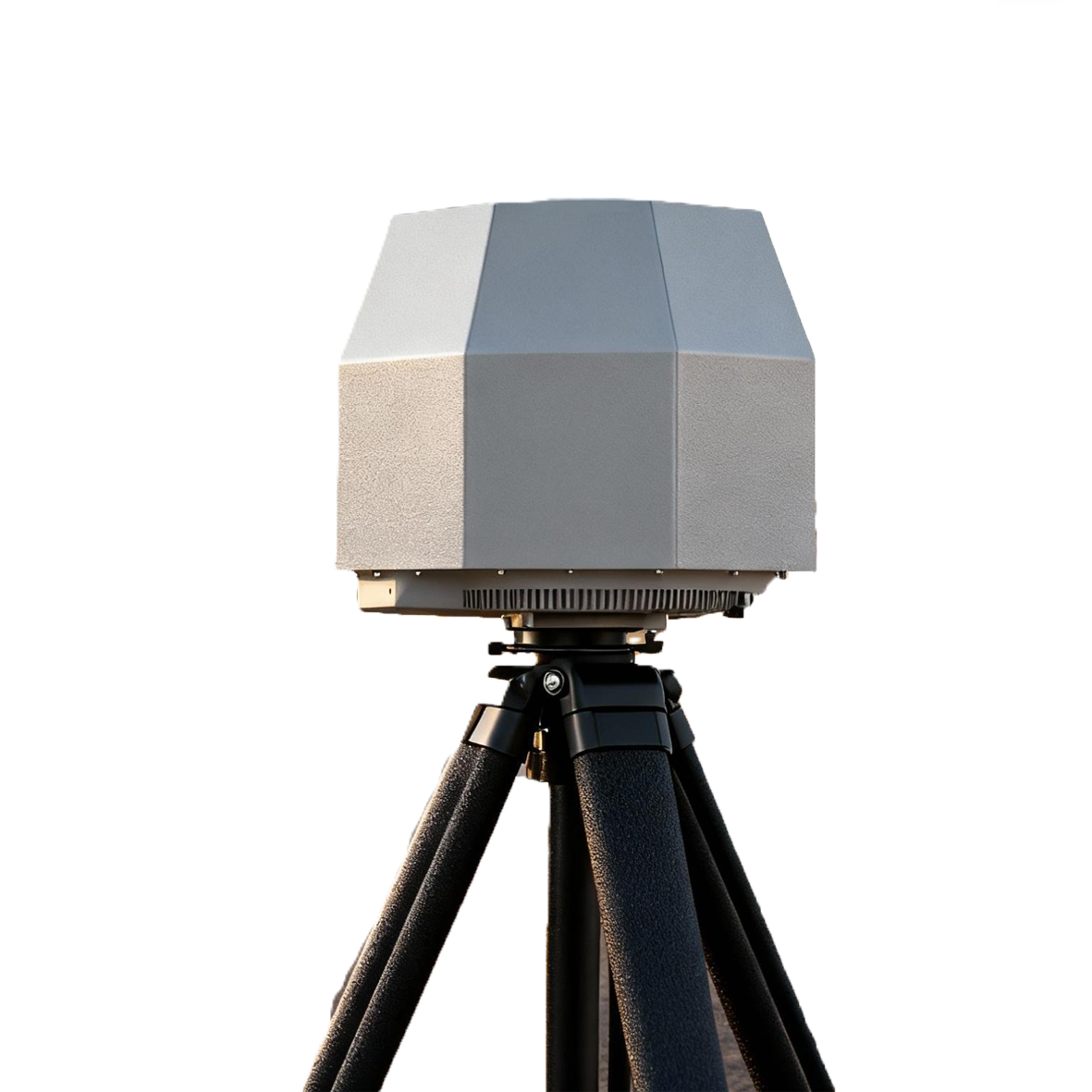

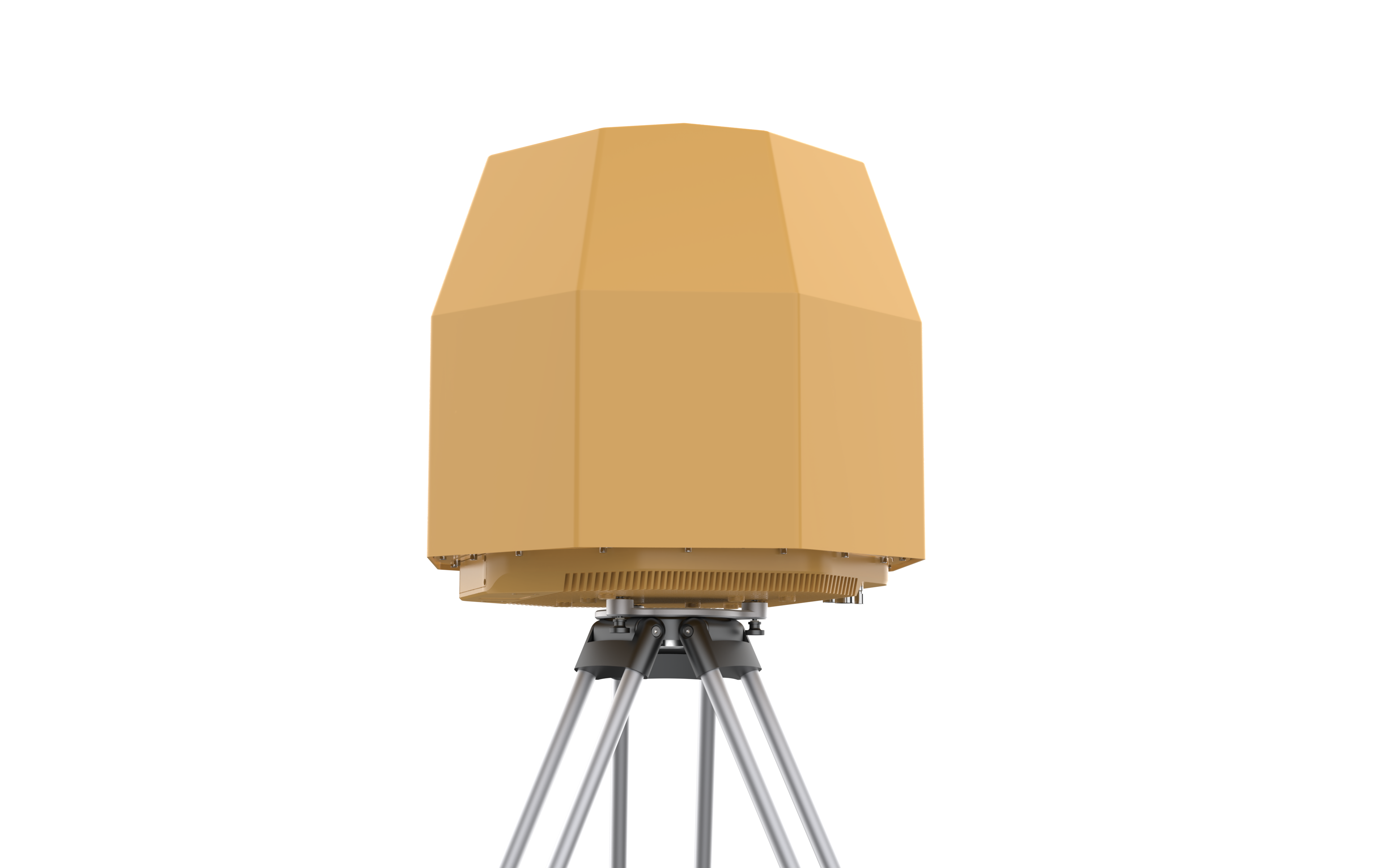

D1000E 10km Full Bands Detector

D1000E

10km Full Bands Detector

10km Full Bands Detector

The D1000E is an intelligent low-altitude security equipment that performs full-band detection, identification, direction-finding and location of drone radio signals. The equipment adopts multiple technologies including a full-band direction-finding antenna array, wide-band signal sensing, AI spectrum-signal identification, protocol analysis and multi-source fusion location.

Inquire Back to Products
D1000E
SPECIFICATIONS

Specifications

Detection Frequency Range 20MHz~6000MHz
Direction-Finding Frequency Range 300MHz~6000MHz
Detection Range ≥10km(Especially for DJI mavic 3)
Direction-Finding Accuracy ≤3°
Detection Coverage Angle 360°
False Alarm Rate ≤ 1%
Simultaneous Detection Capacity ≥30架
Weight ≤ 25kg
Dimensions Diameter: 595mm, Height: 575mm
Protection Ingress IP66

An intelligent low-altitude security device specifically engineered for full-band detection, identification, and direction finding of drone radio signals. It integrates advanced technologies including a full-band direction-finding antenna array, wideband signal sensing, AI-driven spectrum signal recognition, protocol analysis, and multi-source fusion positioning.

Feature:

  • 24/7 unmanned operation
  • Panoramic scanning capable of detecting non-database targets
  • Full-band direction finding
  • Protocol analysis to locate drones and operators
  • Supports allowlist/blocklist management with one-click allowlist addition

  • Customizable signature database

    • See how this product safeguards your low-altitude security
